Jetmaster MK6 Large

Revolutionary Intelligent Servo System with Large Clamping

Fast – Precision – Energy Efficient

The Jetmaster MK6 Large injection moulding machine series is driven by a revolutionary intelligent servo system.

The SVP/2 power pack combines a fast-response gear pump with a high-precision servomotor, integrated with a proprietary servo-drive that guarantees the highest response, highest precision and lowest power consumption at the same time.

Clamping – from 800 to 1650 tons!

Major Advantages of JM MK6 Large Machines

  • 1

    Low Energy Consumption:

    High efficient Innovance Servo Drive system reduces energy consumption up to 80%, bringing high precision and super low noise operation.
  • 2

    Production Flexibility:

    Larger space between tie bars (tie rod clearance), maximized storks bringing moulders the ability of production with various moulds.
  • 3

    Redesigned Platen:

    Redesigned platen provides better distribution of clamping stress, lighter and faster operation and longer life.
  • 4

    Faster Mould Setup:

    Redesigned Ejector system provides the SPI standard and plenty of room to work with the ejector rods, which allows for faster mould setup than ever.
  • 5

    Better Performance:

    Injection unit based on the bearing guides, providing better performance, absorbing of stress and even operation of the injection dual cylinders.
  • 6

    Faster Cycle Times:

    High-pressure injection and fast speed recovery save seconds on cycle time.
  • 7Ergonomic well-designed safety doors and covers maximise the room for operation and maintenance.
  • 8Low maintenance requirement, repeatable and reliable production.

European Specs

  • 1

    EUROMAP STANDARD:

  • Hole pattern and ejector pattern according to Euromap standards*.
  • T-slot or other patterns possible on request.
*Hole pattern/ejector pattern may differ from standard due to platen design.
  • 2

    EUROPEAN COMPONENTS:

    Standard European components:
  • Hydraulic valves: Bosch Rexroth or Vickers
  • Hydraulic pump: Eckerle
  • Linear transducers: Gefran or Novotechnik
  • Electrical components: Siemens, Schneider, Telemechanique, PILZ

B&R- Controller

Closed-loop Control Technology

Customized for the MK6 Large series

Controls

  • 1

    B&R (PPC2200) Controller:

    -Integrated automation solution -High-Speed applications -Manage complete production cells
  • 2

    User Friendly Touch-screen:

    15.6″ multi-touch screen display providing user-friendly operation for clear process visualization.
  • 3

    Intelligent Control System:

    Can-Bus based I/O creates the fastest response and reliability.
  • 4

    Flexibility:

    Isolated and expandable I/O for special operations/options/ Automations.
  • 5

    Save your Data:

    Unlimited mould data saving using a thumb drive.
  • 6

    Advanced Reports:

    Provides various reports for production, settings, alarm records and logs of operational settings.
  • 7

    Network ready:

    Ready to plug into a cloud-based service and participate in the IoT at the very fundamental level.

Injection

  • 1Injection pressure from 21000PSI up to 36000PSI provided by dual cross-parallel high-pressure injection cylinders and shot size starting from 4oz up to 109oz.
  • 2 Injection unit aliment points provide the capability of extending the L/D ratios between 17 to 25.
  • 3Linear bearing-based injection unit to evenly distribute the stress of injection pressure for raising the machine repeatability and reliability.
  • 4High Torque fast speed hydraulic motor and proportional Back Pressure control providing extremely uniform recovery.
Photo Gallery

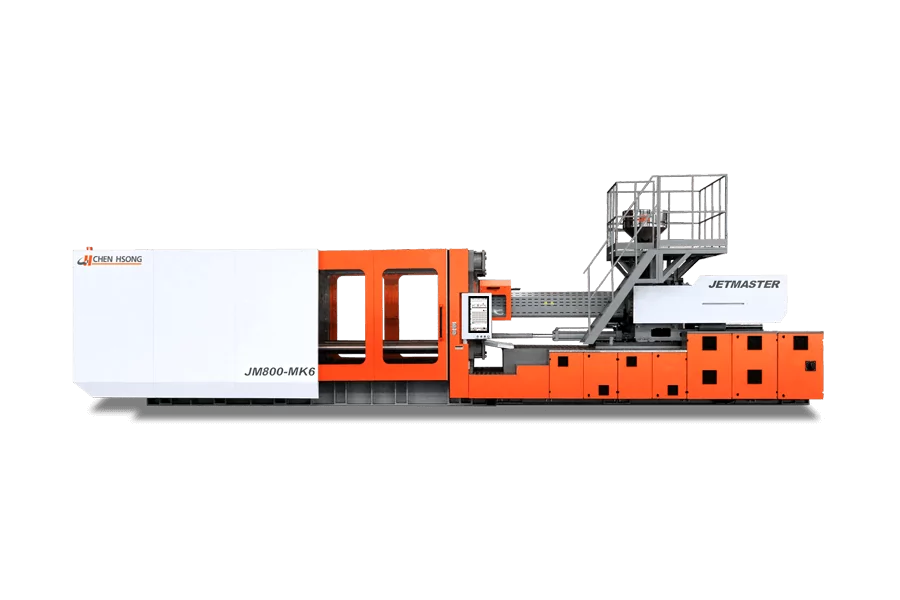

JM800-MK6-1200x800-min
CH-America_InjectionMoldingMachine_JM328-MK6_w1200xh800
PPC2200
CH-America_InjectionMoldingMachine_MK6Feature01_w1200xh800
CH-America_InjectionMoldingMachine_MK6Feature02_w1200xh800
CH-America_InjectionMoldingMachine_MK6Feature03_w1200xh800
CH-America_InjectionMoldingMachine_MK6Feature04_w1200xh800
CH-America_InjectionMoldingMachine_MK6Feature05_w1200xh800
CH-America_InjectionMoldingMachine_MK6Feature06_w1200xh800

Specs

Machine ModelClamping Force (Max)Opening StrokeMax DaylightMould Platen (HxV)Space Between Tie Bars (HxV)Max. Mould ThicknessMin. Mould ThicknessCenter Ring DiameterEjector StrokeEjector Force
Unittmmmmmmmmmmmmmmmmt
JM800-MK6800105020501440×14401020×1020100040025028018.2
JM1000-MK61000123023901630×16301160×1160116045025032021.5
JM1200-MK61200131025601770×17701250×1250125050025032021.5
JM1400-MK61400150029002030×19301450×1350140065025040035,2
JM1650-MK61650160031002190×20701550×1430150070025040035,2
Specifications are subject to change without notice.
Machine ModelScrew DiameterScrew L/D RatioScrew StrokeSwept VolumeInjection Weight (PS)
UnitmmmmmmL/DL/DL/Dmmcm3cm3cm3ggg
JM800-SVP/2909810024,022,019.6500317937704749289334304322
JM1000-SVP/29811012024,722,020,2
550414652246217377347545658
JM1200-SVP/211012013024,022,020,3
600569967827960518661727244
JM1400-SVP/212013014023,822,020,4
6507347862310001668678479101
JM1600-SVP/213014015023,72220,5
700928610770123648450980111251
Machine ModelInjection Pressure (Max.)Injection RateScrew Rotation Speed (Max)Nozzle Contact Force (Max)Nozzle Stroke
Unitkgf/cm2kgf/cm2kgf/cm2cm3/scm3/scm3/srpmtmm
JM800-SVP/221701840146060772090713016.7560
JM1000-SVP/2232018401550700885105311016.7595
JM1200-SVP/22190184015708751045122611016.7700
JM1400-SVP/221101800155010351215140910016.7720
JM1600-SVP/22090180015701195139015969516.7800
Specifications are subject to change without notice.
